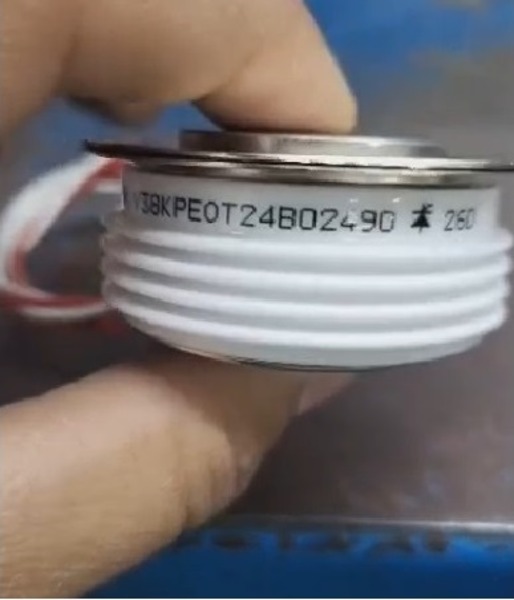

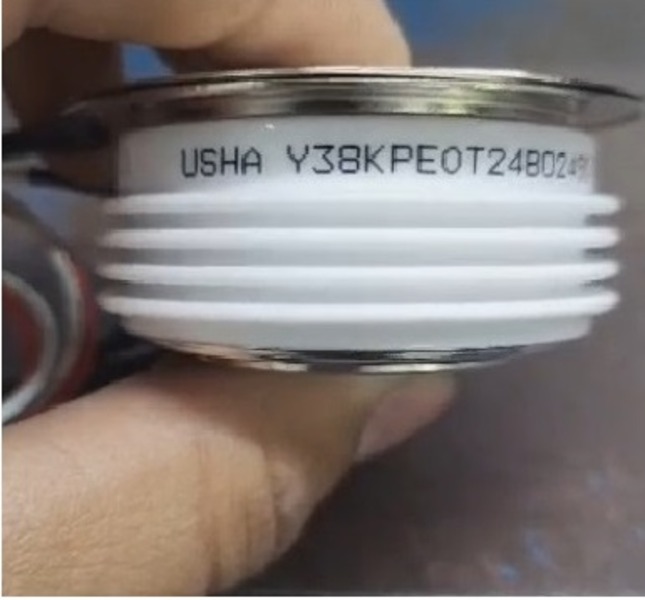

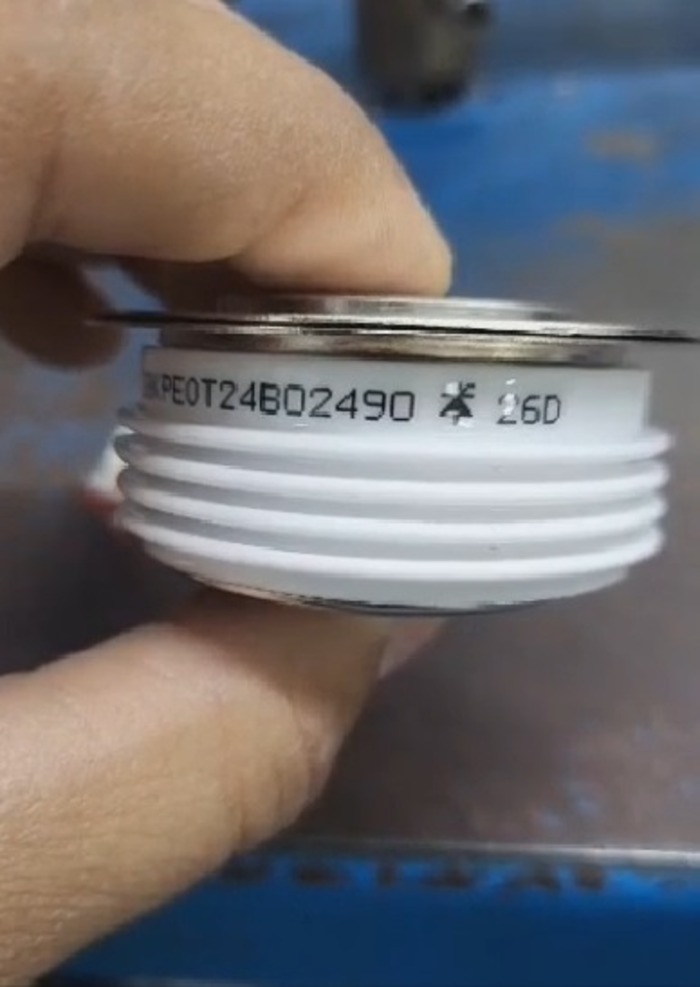

Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490

Send Inquiry

Request To Call Back

Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490

Name: Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490
Brand: USHA ELECTRIC POWER PVT. LTD.
Price: 3989.0 INR
Availability: InStock

Price 3989.0 INR/ Number

Get a Price/Quote

Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490 Specification

Connector Type
Axial Stud Terminal

Efficiency
Above 98%

Operating Temperature
-40C to +125C

Shape
Round Capsule

Surface Finish
Nickel Plated

Overheating Protection
No In-built Protection

IP Rating
IP40

Mounting Type
Stud Mounting

Feature
High Surge Capability, Low Forward Voltage Drop

Power Factor
High

Insulation Material
Ceramic

Humidity %
Up to 95% RH Non-Condensing

Product Type
DCR Thyristor Capsule

Application
Rectifiers, Inverters, Converter Circuits, Industrial Power Control

Protection Level
IP40

Frequency (MHz)
50 Hertz (HZ)

Rated Voltage
2400 V

Energy Consumption
Low

Output Type
DC

Color
Silver with Red Base

Dimension (L*W*H)
38 mm (Diameter)

Usage & Applications
Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490

Weight
Approx. 175 g

Warranty
1

Input Voltage
Up to 2400 V

Phase
Single Phase

Size
Standard 38 mm Capsule

No Of Poles
Single

Material
Semiconductor (Silicon)

Connection Type
Stud Type Terminal

Gate Trigger Voltage (Vgt)
Max 2 V

Cycle Life
>10,000 switching cycles

Peak Surge Forward Current (IFSM)
28,000 A

Repetitive Peak Reverse Voltage (VRRM)
2400 V

Reverse Recovery Time
Fast Switching

Storage Temperature Range
-40C to +150C

Packaging Type
Corrugated Box

Compliance Standard
IEC 60747

Model Number
Y38KPEOT24B02490

RoHS Compliance
Yes

Electrically Isolated Base
No

Maximum Average Forward Current (IF(AV))
2490 A

Gate Trigger Current (Igt)
Typical 150 mA

Leakage Current
<50 A at Rated Voltage

Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490 Trade Information

Minimum Order Quantity
5 Number

Delivery Time
1 Week

About Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490

Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490, Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490, Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490, Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490, Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490

High Performance for Industrial Power Control

The Y38KPEOT24B02490 thyristor capsule is designed to meet the rigorous demands of industrial power control applications. With a high surge capability and a maximum average forward current of 2490A, it can reliably handle heavy-duty switching cycles, ensuring stability and longevity in your rectification and conversion tasks. Its fast switching and high efficiency make it ideal for applications in rectifiers, inverters, and converters.

Durable, Compliant, and Easy to Install

Featuring a nickel-plated, stud-mount design and ceramic insulation, this thyristor capsule offers robust construction with IP40 protection. The device complies with IEC 60747 standards and RoHS, confirming its safety and environmental suitability. With a cycle life exceeding 10,000 switching cycles and a standard 38 mm diameter, the unit is easy to integrate into new and existing industrial systems.

FAQ's of Usha Electric Make DCR Thyristor Capsule Model No. Y38KPEOT24B02490:

Q: How is the Usha Electric DCR Thyristor Capsule Model No. Y38KPEOT24B02490 typically used?

A: This thyristor capsule is primarily used in industrial applications such as rectifiers, inverters, and converter circuits. It is suitable for high-power switching, providing reliable DC output and efficient control in industrial power management systems.

Q: What are the benefits of choosing this model for my application?

A: The benefits include high surge capability (28,000A), low forward voltage drop, fast switching, high efficiency (>98%), and compliance with IEC 60747 and RoHS standards. Its robust design ensures it performs well under demanding conditions with minimal maintenance.

Q: Where can this DCR thyristor be installed?

A: The thyristor is designed for stud mounting, making it suitable for installation in various industrial control panels, rectifier assemblies, inverter banks, and converter circuits. Its compact 38 mm round capsule shape allows integration in standard setups.

Q: When should I consider replacing the thyristor capsule?

A: Though it boasts a cycle life of more than 10,000 switching cycles, replacement should be considered if there's a noticeable performance drop, excess leakage current, or after prolonged use in environments regularly near its rated limits or operating temperature extremes.

Q: What is the process for integrating the thyristor into my system?

A: You need to mount the device using its stud-type terminal, ensuring proper insulation and thermal management. Confirm compatibility with your circuit's voltage and current requirements (up to 2400V, 2490A average), and follow IEC 60747 guidelines for safe installation.

Q: How does the device handle extreme temperatures and humidity?

A: This thyristor capsule is rated for storage from -40C to +150C and can operate between -40C to +125C. It tolerates up to 95% non-condensing relative humidity, ensuring reliable performance in harsh industrial environments.

Q: What protection features are included in this model?

A: While the device offers high surge capability and robust construction, it does not have built-in overheating protection. External protective circuits or thermal monitoring are suggested for enhanced safety.
